WEIDMULLER Analogue Signal Conditioning

WEIDMULLER analogue signal conditioning solutions are designed for conversion, galvanic isolation and reliable transmission of analogue signals in industrial automation and process-control systems. Signal conditioners help interface field instrumentation with control and monitoring equipment while maintaining signal integrity between different parts of the installation.

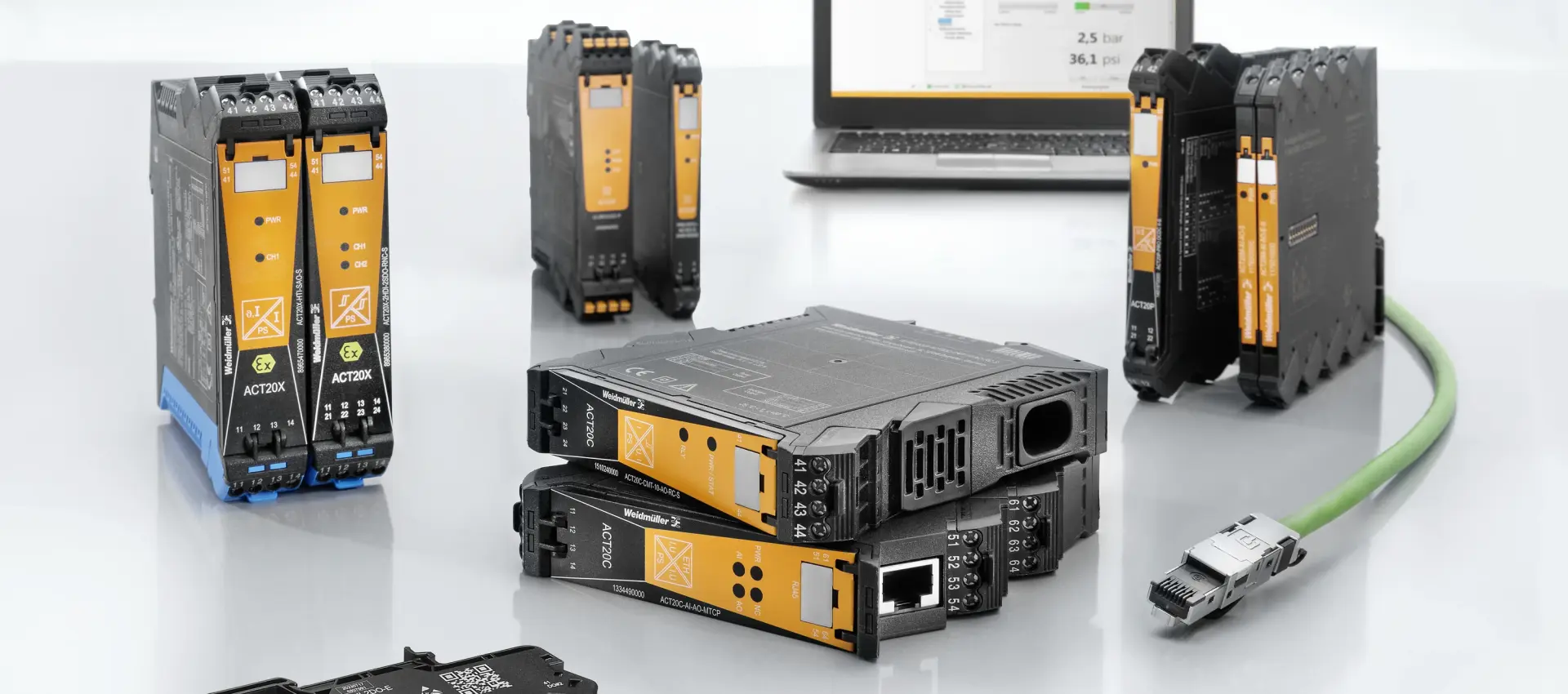

The portfolio includes the ACT20M and ACT20P product families. ACT20M provides compact signal-conditioning solutions in a representative housing width of 6 mm, making the range suitable where panel space is an important consideration.

ACT20P provides a higher-function platform in a representative 12.5 mm housing and includes isolating amplifiers and measuring transducers for different instrumentation and automation requirements. Depending on the selected model, devices support processing of current and voltage analogue signals.

Configuration methods vary by product and can include DIP switches, local display or FDT/DTM software. This allows the selected signal-conditioning device to be configured according to the required input, output and operating parameters.

Sea Star International can assist with WEIDMULLER ACT20M and ACT20P selection based on signal type, required galvanic isolation, input and output requirements, available panel space and configuration method. Instrument datasheets and I/O requirements can be submitted for technical matching and RFQ preparation.
